XTK-710E
XTK-710E
Price:
No Price
Sale Price:
No Price
Availability: in stock
Prod. Code:

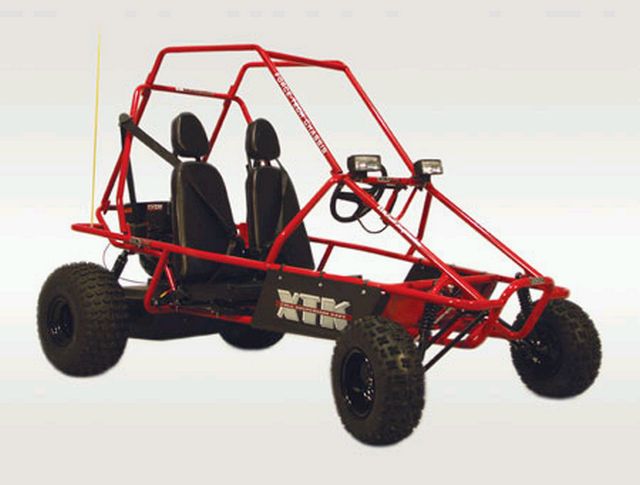

The XTK 710E is the high powered brother of the XTK 706. This top of line machine features not only
Engine
Subaru
Type
Displacement
265cc
Power (BHP @ RPM)
Torque
17 @ 2600
Starting System
Electric Start w/recoil backup
Carburetion
Float with prime
Exhaust System
Aluminized muffler with heat shield
Fuel Capacity
2.3 gallons
Oil Capacity
1.3 pints
Spark Plugs
Champion RL86C, NGK BR6HS
Transmission
Type
Torque Converter
Drive Ratio: Low/High
6:1
Chain Size
1/2" Pitch . . . #420
Axles
Rear
1" Hardened alloy steel
Tires & Wheels
Front
16/8 x 7
Rear
22/11 x 8 ATV
Frame
Type - heavy gauge - jig welded
1-1/4" 11 ga HREW Steel Tube
Finish
Baked Powder Coat Gloss, Red
Suspension
Front - Coil over shocks
Independent Swing Arm
Rear - Coil over shocks
Swing Arm
Brake
Type: Foot Operated
6" Disc with Caliper w/parking brake
Performance
Maximum Speed (Approx)
32-34 mph
Fuel Consumption (Approx)
30-50 mpg
Terrain
Hills, slopes, grass, mud and sand
Special Features
Seat
Dual bucket, High Density Foam
Restraint System
Three-Point Shoulder/ Lap Belts
Engine Stop Switch
In Steering Wheel
Mud Guards
1 1-4 " Full Brush Bars
Custom Bars
Fully enclosed footwell
Lights
Dual running lights
Dimensions
Curb Weight
447 lbs.
Maximum Rider Weight
400 lbs.
Gross Vehicle Weight
847 lbs
Vehicle: Overall
Length 93.5"
.
Width 46.5"
.
Height 60"
.
Seat to Pedals 35"-40"
10H.P. but also includes electric start, dual running lights, larger tires and a larger steering wheel. A monster machine with 10" of ground clearance, independent A-arm front suspension with coil-over shocks, extended wheelbase and oversized cockpit. The biggest baddest kart value on the planet!
