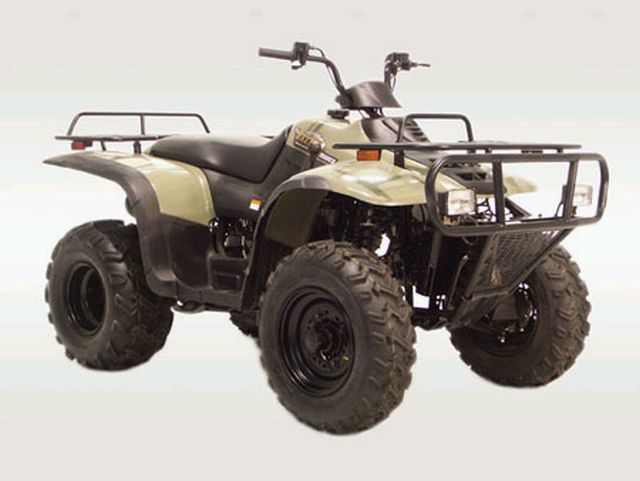

The new Talon 4X4 was released in October 2005 as the 4 wheel drive version of the current Talon 2WD. The demand has been overwhelming for the 4WD version and it's finally available with all the same premium features.
|
Engine |
|
|
Type |
Liquid Cooled 4-Cycle |
|
Displacement |
260cc |
|
Starting System |
Push Button Electric |
|
Fuel Capacity |
3.75 gallons |
|
Oil Capacity |
1.25 quarts |
|
Spark Plug |
NGK DR8EA/Champion RA6HC |
|
Transmission |
|
|
Type |
CVT Automatic w/Reverse / Hi-Lo Range Forward |
|
Drive |
4WD/Shaft |
|
Tires & Wheels |
|
|
Front |
AT 24 x 8 x 12" , Steel Rim |
|
Rear |
AT 24 x 11 x 10", Steel Rim |
|
Frame |
|
|
Type - heavy gauge - jig welded |
1" HREW Steel Tube |
|
Finish |
Baked Powder Coat/Gloss Black |
|
Suspension |
|
|
Front - independent |
Dual Coil Over Hyd. Struts w/6" Travel |
|
Rear - swing arm |
Adj. Coil Over Hyd. Shock w/7" Travel |
|
Brake |
|
|
Front-Hand Operated Hydraulic |
Double Disc |
|
Rear-Hand Operated w/Foot Back Up |
Double Disc |
|
Performance |
|
|
Maximum Speed (Approx) |
Low Range 5-7 mph / High Range 40 mph |
|
Fuel Consumption (Approx) |
20-30 mpg |
|
Terrain |
Hills and slopes, grass, dirt, mud, sand |
|
Special Features |
|
|
Seat |
High Density Foam |
|
Polypropylene Body with full fenders |
Light Moss Green and Black |
|
Engine Stop Switch |
Left handlebar and tether |
|
Other |
Mud guards, foot/toe guards, flag |
|
Dimensions |
|
|
Curb Weight |
651 lbs. |
|
Towing Capacity |
450 lbs. |
|
Utility Rack Capacity |
Front-50 lbs./Rear-75 lbs. |
|
Average seat height |
34" |
|
Vehicle: Overall |
Length 82 1/2 " |
|
. |
Width 46" |
|
. |
Height 46" |
|
. |
Wheelbase 49 3/4" |
|
. |
Ground Clearance 7 1/4" |
