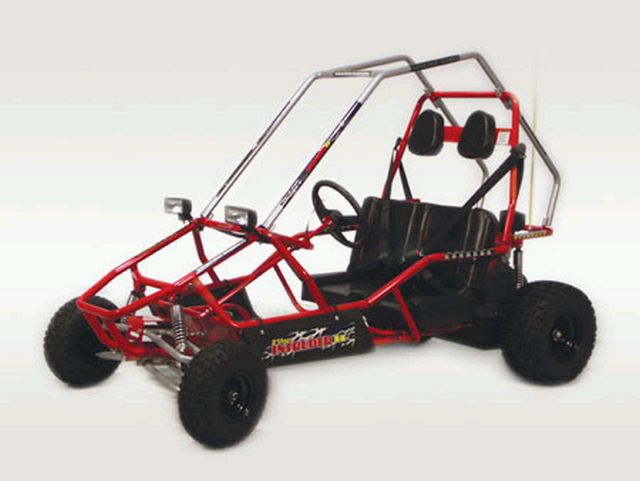

The all new Intruder ll hits the market with a bold new style. It is the next step up from the original Intruder and features a new larger diameter 1/1/4" tube frame and dual A-arm independent front suspension. Powered by the same 211cc
7HP Robin Subaru engine and dual wheel torque converter drive, this kart is a tremendous value and strong performer. When you're looking for the biggest bang for the buck and want to turn some heads, the Intruder ll is the hot ticket.
|
Engine |
Subaru |
|
Type |
7 HP Air cooled, 4-cycle, OHV/OHC |
|
Displacement |
211cc |
|
Power (BHP @ RPM) |
7.0 @ 4000 |
|
Torque |
10.26 @ 2400 |
|
Starting System |
Recoil |
|
Fuel Capacity |
0.95 gallons |
|
Oil Capacity |
20 oz. |
|
Spark Plugs |
Champion RL86C, NGK BR6HS |
|
Transmission |
|
|
Type |
Torque Converter |
|
Drive |
Dual wheel drive |
|
Chain Size |
1/2" Pitch . . . #420 |
|
Axles |
|
|
Rear |
1" Hardened alloy steel |
|
Tires & Wheels |
|
|
Front |
145/7 x 6" Knobby |
|
Rear |
18/9.5 x 8" ATV |
|
Frame |
|
|
Type - heavy gauge - jig welded |
1-1/4" HREW Steel |
|
Finish |
Baked Powder Coat |
|
Suspension |
|
|
Front - Coil over shocks |
Dual A-arm |
|
Rear - Coil over shocks |
Swing Arm |
|
Brake |
|
|
Type: Foot Operated |
6" Disc with parking brake |
|
Performance |
|
|
Maximum Speed (Approx) |
30-32 mph |
|
Fuel Consumption (Approx) |
30-50 mpg |
|
Terrain |
Hills, slopes, grass, mud and sand |
|
Special Features |
|
|
Seat |
Fingertip slide adjustable seats |
|
Restraint System |
Dual Three-Point Shoulder/ Lap Belts |
|
Engine Stop Switch |
In Steering Wheel |
|
Lights |
Dual running lights |
|
Dimensions |
|
|
Curb Weight |
346 lbs. |
|
Maximum Rider Weight |
350 lbs. |
|
Gross Vehicle Weight |
696 lbs |
|
Vehicle: Overall |
Length 89.5" |
|
. |
Width 50.75" |
|
. |
Height 59.5" |
|
. |
Seat to Pedals 35"-39" |
