Engine |
Subaru |
|
Type |
Subaru, Air cooled, 4-cycle, OHV/OHC, 5 HP, single cylinder |
|
Displacement |
169 cc |
|
Power (BHP @ RPM) |
6.5 @ 4000 |
|
Torque |
8.3 @ 2800 |
|
Starting System |
Recoil |
|
Carburetion |
Float with prime |
|
Air filtration |
Pleated paper cartridge |
|
Lubrication |
Splash |
|
Exhaust System |
Aluminized muffler with heat shield |
|
Fuel Capacity |
0.66 gallons |
|
Oil Capacity |
1.3 pints |
|
Spark Plugs |
Champion RL86C NGK BR6HS |
|
Transmission |
|
|
Type |
Centrifugal Clutch / Single ratio |
|
Drive ratio-overall |
6.6:1 |
|
Chain Size |
3/8" pitch . . . NC35 |
|
Tires & Wheels |
|
|
Front |
145/70 x 6" low pressure knobby, 6" steel rim |
|
Rear |
145/70 x 6" low pressure knobby, 6" steel rim |
|
Frame |
|
|
Type - heavy gauge - jig welded |
1" HREW Steel |
|
Finish |
Baked powder coat |
|
Brake |
|
|
Type: Foot Operated |
4" drum with parking brake |
|
Performance |
|
|
Maximum Speed (Approx) |
22-24 MPH |
|
Fuel Consumption (Approx) |
30-50 mpg |
|
Terrain |
Flat to gently sloped |
|
Special Features |
|
|
Seat |
Dual seat with adjustable slide |
|
Restraint System |
Three-point shoulder/lap belts |
|
Engine Stop Switch |
In Steering Wheel |
|
Custom bars |
Brush bars 1" HREW Steel |
|
Safety |
Whip Flag |
|
Dimensions |
|
|
Curb Weight |
246 lbs. |
|
Maximum Rider Weight |
250 lbs. |
|
Gross Vehicle Weight |
496 lbs. |
|
Vehicle: Overall |
Length 61.25" |
|
. |
Width 40.25" |
|
. |
Height 48" |
|
. |
Seat to Pedals 33.5" - 37" |

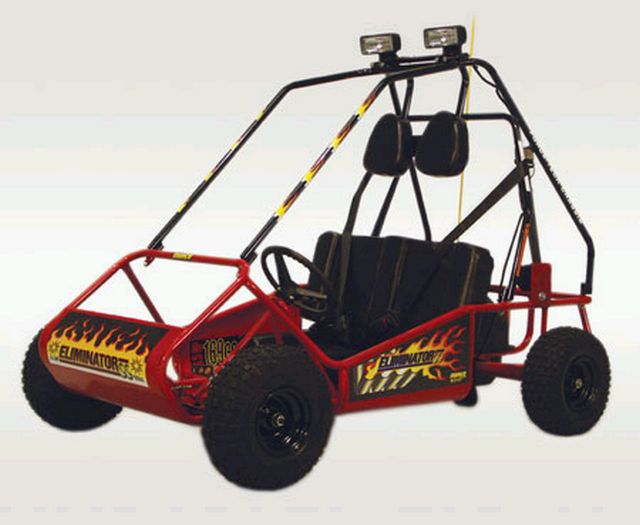

6.5HP Robin/Subaru high performance engine and dual running lights for those looking for a little more punch. The same graphics featuring the "Funny Car" style side exhaust headers make the kart look fast just sitting still!
